Innomesh v3.5.3 was released to production on 26/09/2025.
Here’s a summary of the new features, enhancements and bug fixes included in this release.
What’s New – September 2025
Innomesh Room Manager Summary✨
Infoblox DDI Integration – Added DDI (DNS, DHCP, IPAM) integration with Infoblox for device onboarding.
XPanel Support – Enabled XPanel functionality for Space CE rooms using Crestron middleware for touch panel control.
Beta Software Releases – Beta software is now supported for Space CE.
Innomesh Portal Summary ✨
Advanced Filters – Introduced advanced filtering for main table views, with support for saving and recalling filter presets.
Asset Actions– Now available in the Room Support View’s assets pane within Innomesh Portal.
Filtered CSV Downloads – The “Download CSV” function on the Information page now exports only the rooms currently filtered in.
Site Filter – Now supports filtering multiple sites at once within Innomesh Portal.
Asset Profile Images – Optimised for faster load times.
Hotlist Alert Tooltips – Added to display full alert descriptions when truncated.
Mattermost Notifications – Notification formatting has been refined so that messages can be found more reliably via search.
Room Manager – The Details
Infoblox DDI Integration
DDI stands for DNS, DHCP, and IP Address Management (IPAM).
Infoblox manages how devices are identified, addressed, and connected across the network. Through its integration with Infoblox, Innomesh is now able to automate the process of DNS record creation, IP address assignment, and template configuration to streamline device onboarding at scale. This capability automates and ensures consistency in IP allocations and DNS management, positioning Innomesh as a complete, end-to-end platform for network-enabled device provisioning and lifecycle management.
Note: this feature is currently available in selected Innomesh tenancies only.
The following section provides an overview of the Infoblox integration:
Automated Device Onboarding:

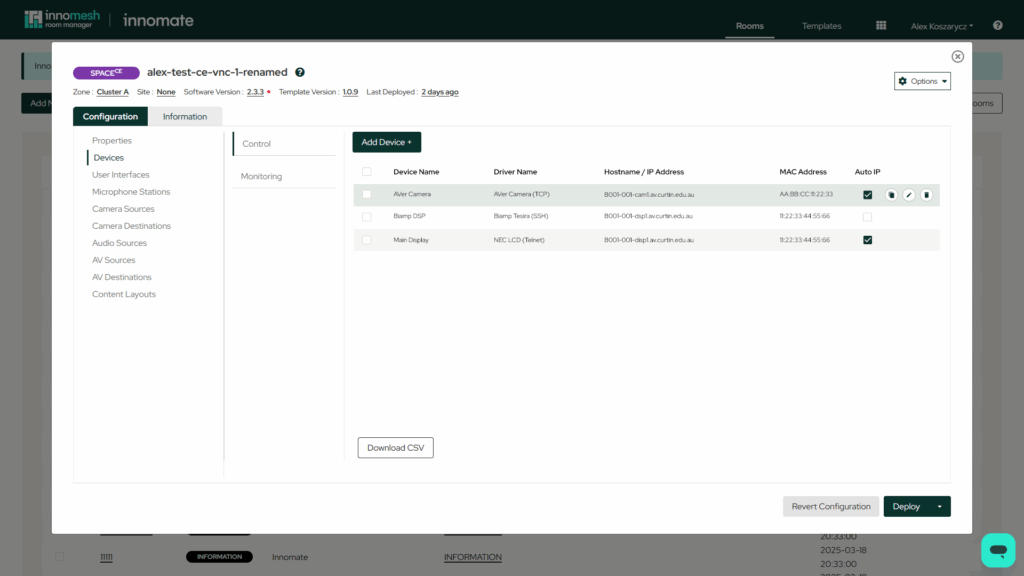

When adding a new device, a simple “Auto IP” option is now available. Innomesh will then communicate with your Infoblox system to automatically reserve the next available IP address from a designated subnet, create the corresponding DNS entry using the device’s hostname, and apply the configuration. This transforms a traditionally multi-step manual process into a single click.
Simplified Management of Complex Hardware

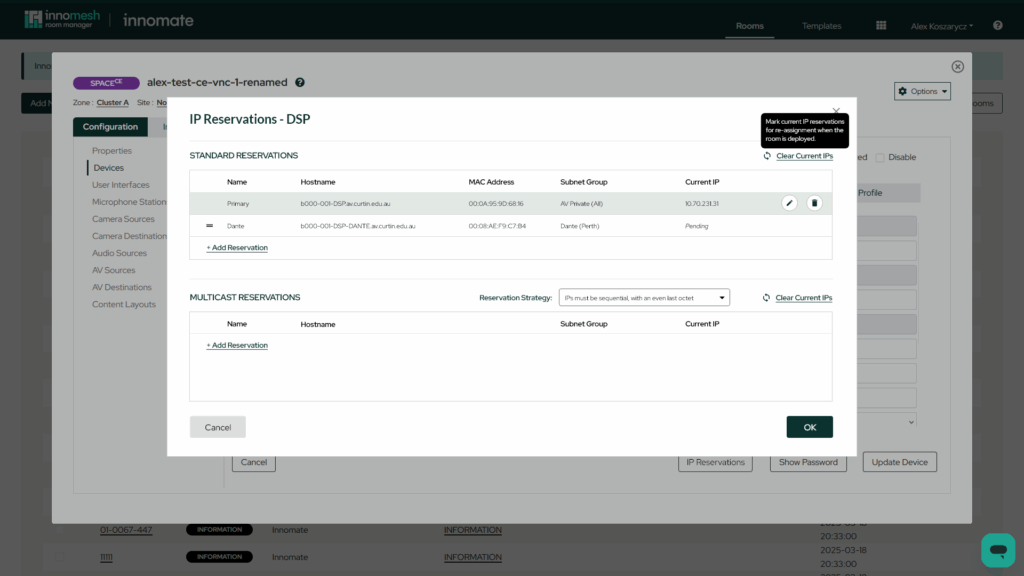

The integration seamlessly handles devices with multiple network interface cards (NICs). You can easily define reservations for each MAC address on a device, and the DDI service will automatically create the necessary IP reservations and DNS entries for all of them, ensuring AV equipment with more complex networking needs is configured correctly and efficiently.

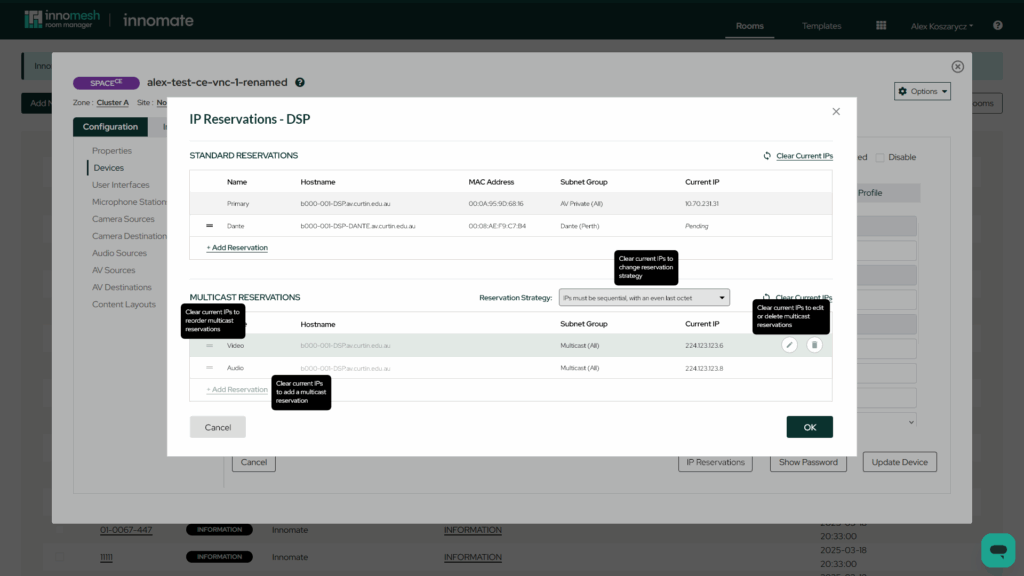

Advanced Network Control
Clients can now manage multicast reservations directly within the Innomesh platform. You can define specific reservation strategies to control how multicast addresses are assigned, providing granular control over AV-over-IP streams and other network-intensive traffic.
Scalable Automation with Templates

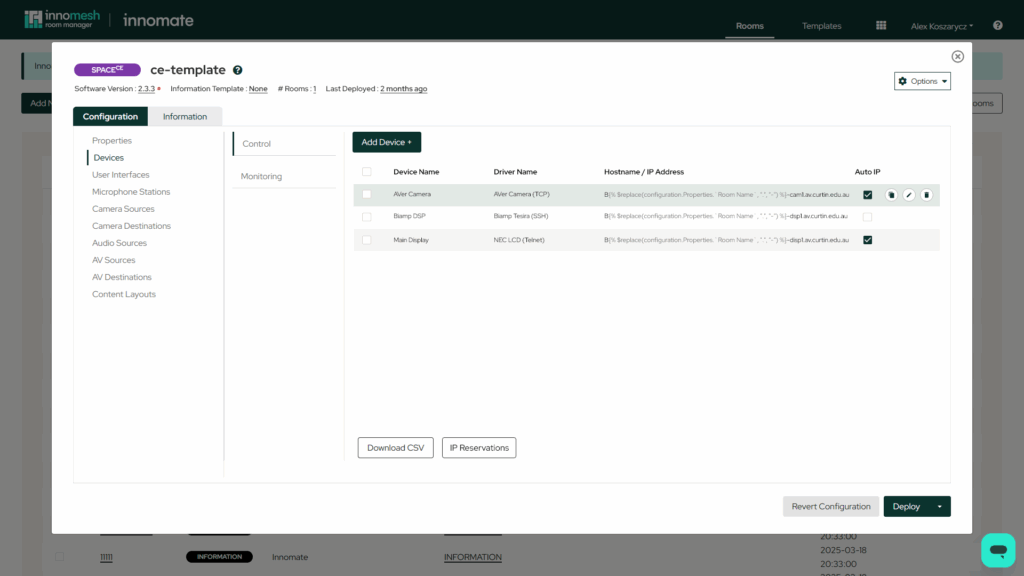

DDI functionality is fully integrated into room templates. By using JSONata notation, hostnames can be dynamically generated based on room-specific data during creation. This powerful feature further automates device and network setup, making large-scale deployments faster and more consistent than ever before.

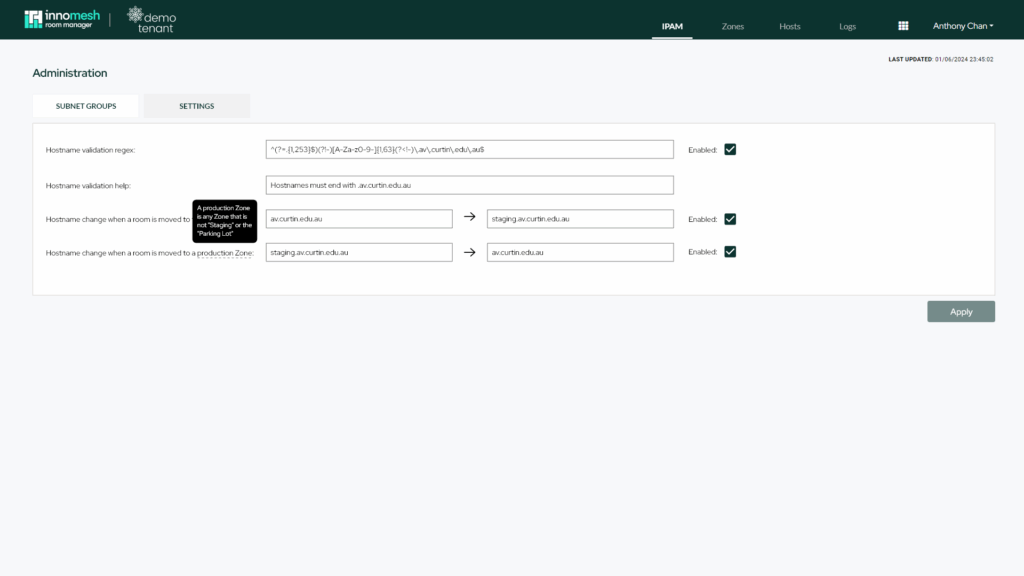

Centralised Administration, Staging Capabilities, and Standards Enforcement
The DDI Administration page provides global configuration options, including the ability to enforce strict hostname conventions using regex patterns to maintain network integrity and to ensure all device hostnames adhere to your organisation’s naming standards. Also availability is the ability to set devices up for “staging” before migrating them to production, whereupon hostnames are automatically migrated from a “staging” to a “production” convention.
XPanel Support
In this release, XPanels can now be added to Space CE rooms that are utilising Space CE with Crestron middleware. This allows users to remotely control the touch panels of these rooms using Crestron’s native XPanel program.
Beta Software Releases
Innomesh now has the ability to show beta software releases for Space CE versions. The beta software releases can be restricted to certain users to ensure that the beta version is not accidentally applied to rooms that it may not be compatible with.
Innomesh Portal – The Details

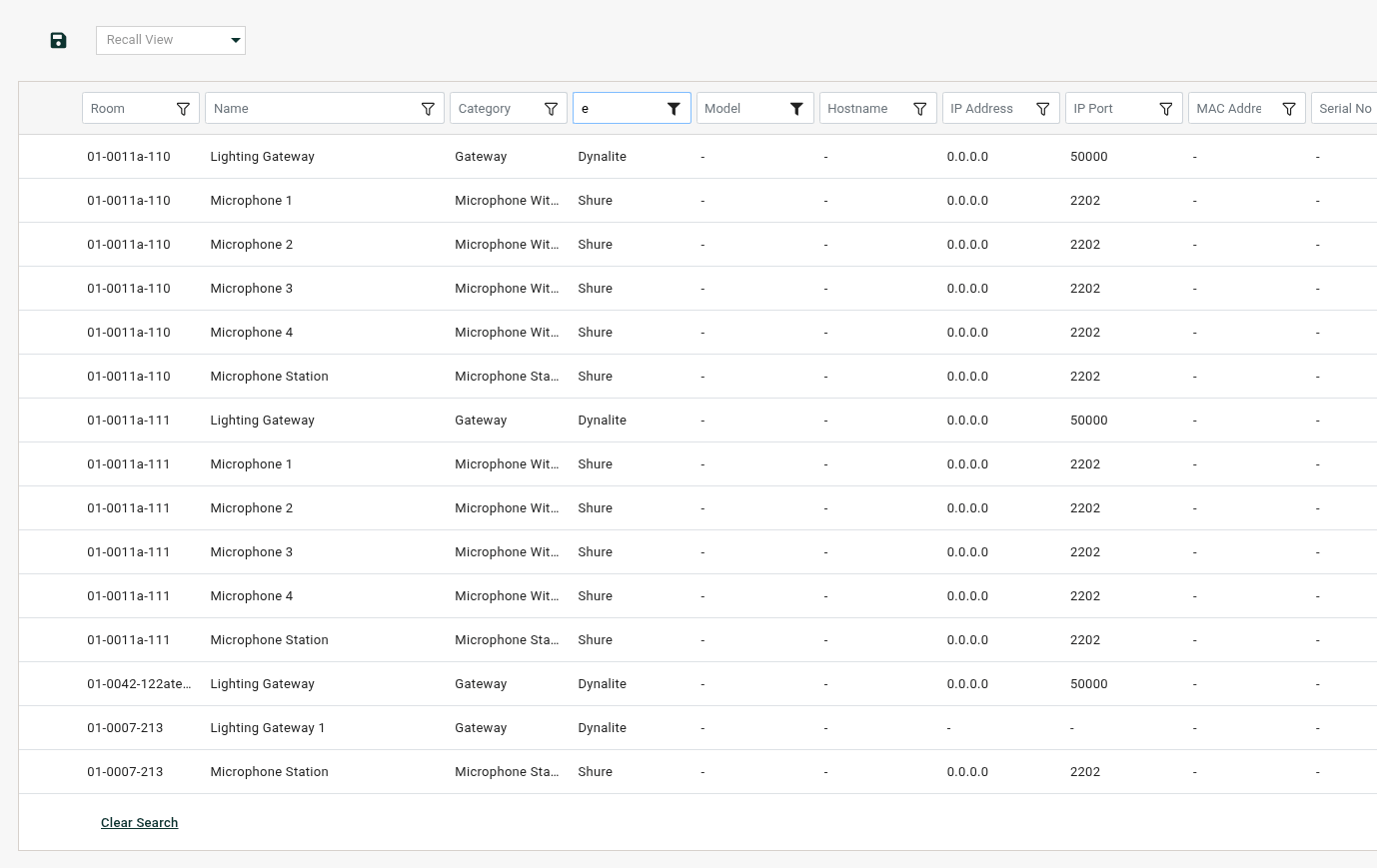

Advanced Filters
The Innomesh Portal’s filters have been uplifted to allow for much more flexibility in searching across the tables in the platform. The filters now support conditions, which allow users to filter devices, rooms and alerts using expressions that were not previously possible.
The new filters are available across the following tables in the Innomesh Portal:
- Hotlist
- Rooms
- Information
- Assets
- Integration – Microsoft Teams Room
- Integration – Zoom Room
- Administration – Audit Logs

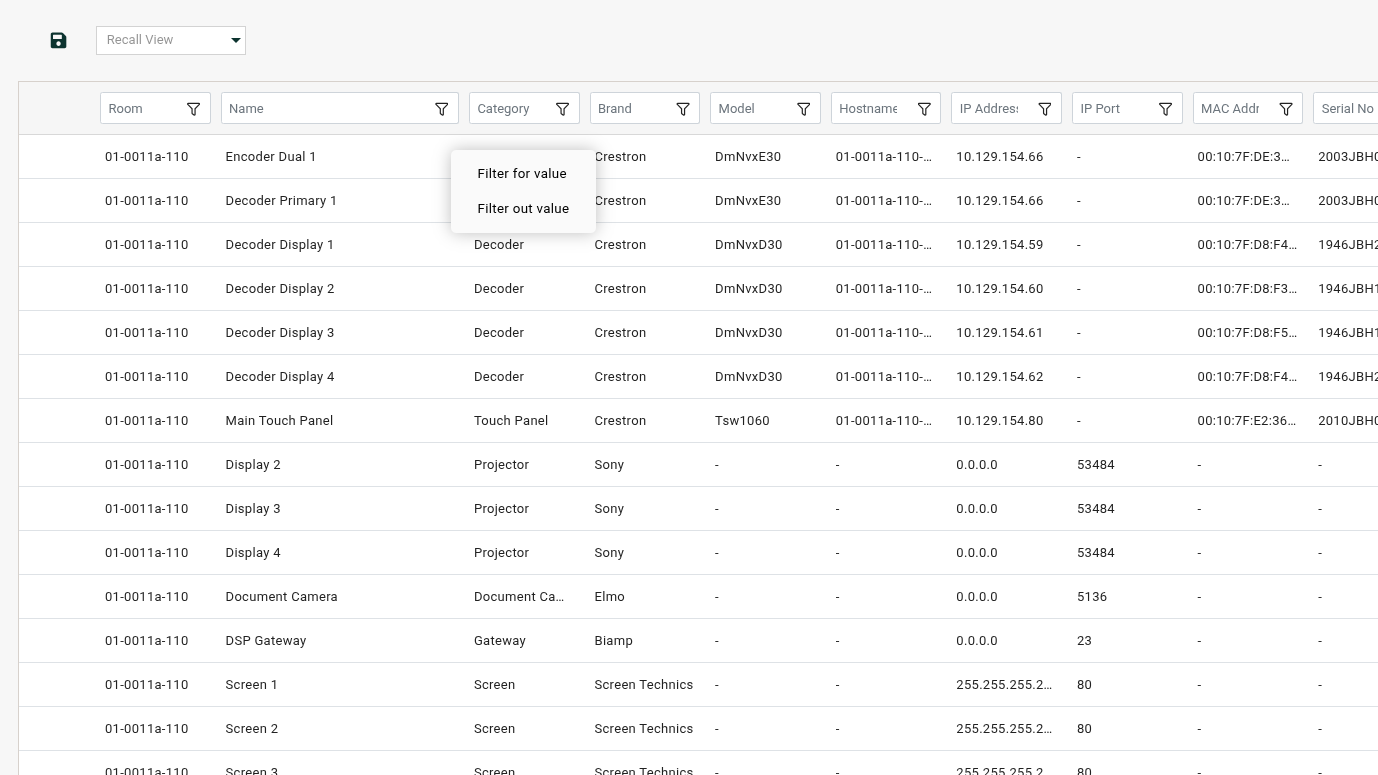

Right-clicking on any value in any of the tables will now provide an option to “Filter for value” or “Filter out value,” providing quick access to find or exclude a value that is already present on your screen and avoid copying and pasting it.

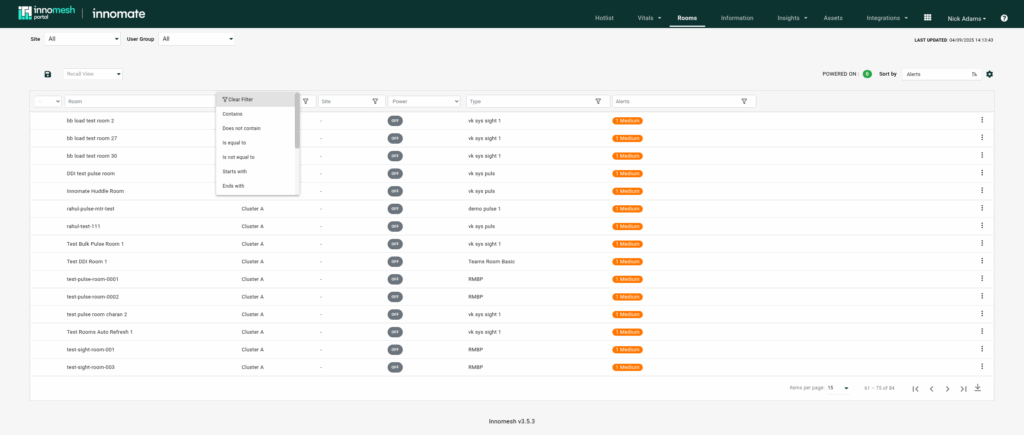

A list of the conditions now available include:
- “Contains” – this is existing, and will remain the default
- “Does not contain”
- “Is empty”
- “Is not empty”
- “Starts with”
- “Ends with”
- “Is equal to”
- “Is not equal to”
- “Greater than or equal to” (number or date values only)
- “Less than or equal to” (number or date values only)
- “Greater than” (number or date values only)
- “Less than” (number or date values only)

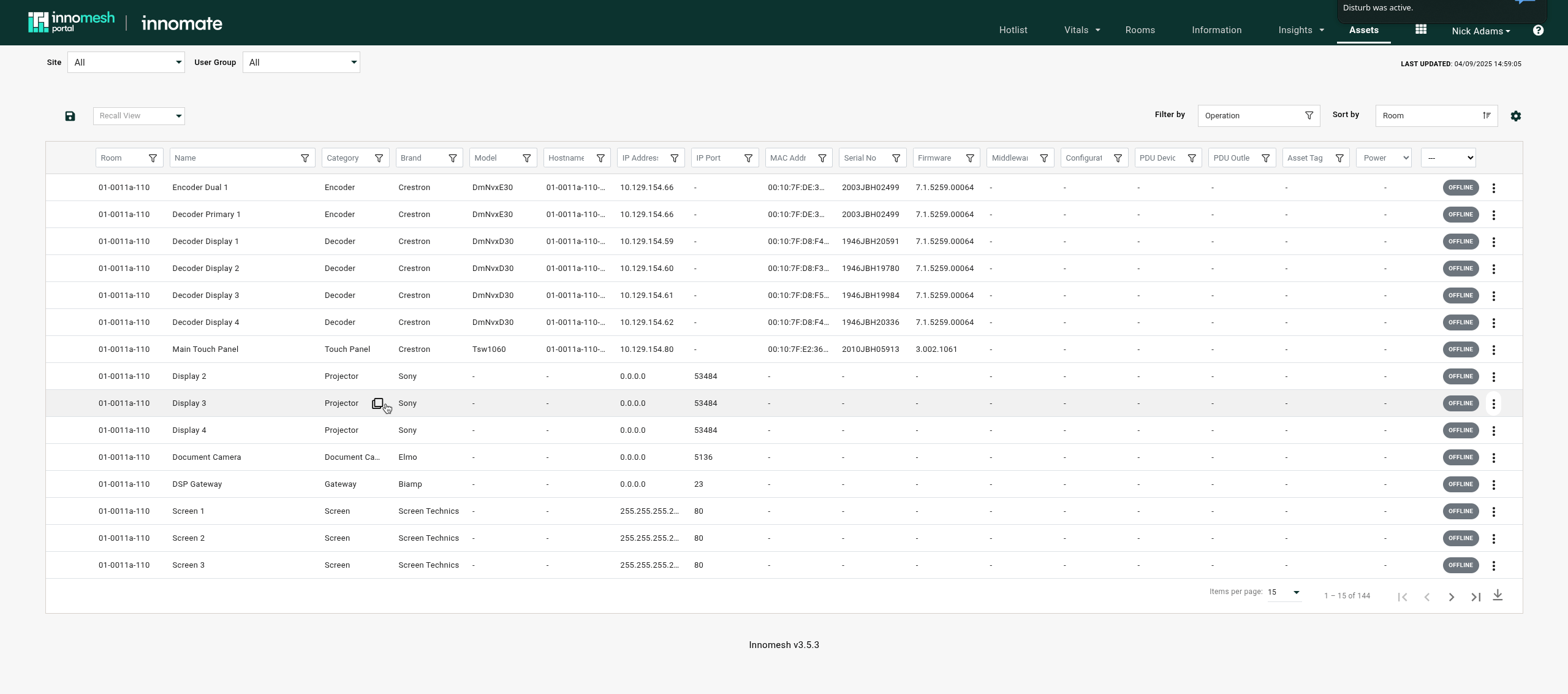

In addition, the filters can be saved as a “filtered view” so that they can be recalled by all users at a later time. Once you have applied a set of filters that need to be recalled, hover over the floppy disk icon and select “Save View As”. Once the view is named and saved, it can then be recalled by selecting it from the list in the recall view drop-down.

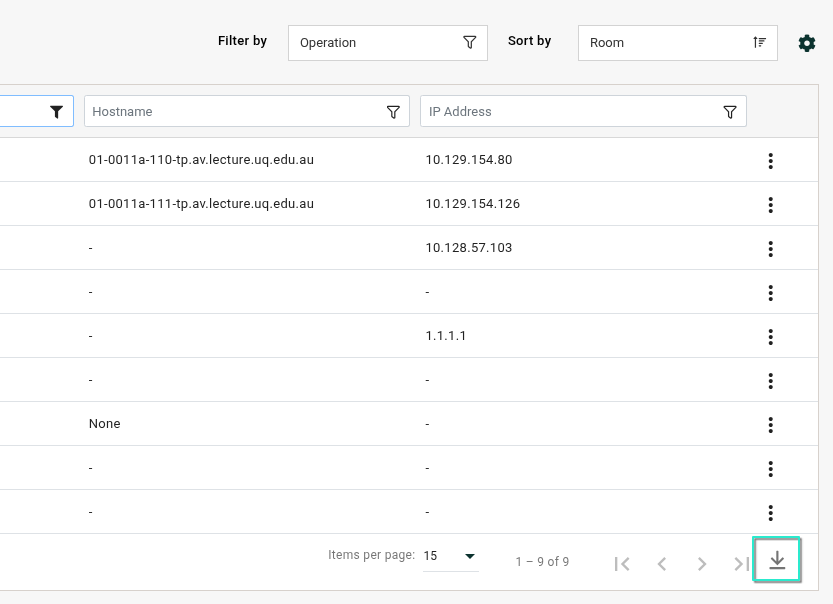

Filtered CSV Downloads
Table CSVs downloaded from the platform using the “Export CSV” button now consistently download only the filtered items list, not the full list.
Once the table is filtered, press the Download icon in the bottom right of the table, and a CSV will be downloaded in your browser. When opened, this CSV will contain ONLY the values that are in the filtered table.
Asset Actions in Room Support View
Asset actions are now available in the Room Support View. Previously, to initialise an action (for example, reboot, source select, volume select) in the Room Support View, the user would have had to click on the asset and enter the Asset Support View. This would have taken them away from the Room Support View and added more time to the process, especially while troubleshooting an issue with the room.
Site Filter

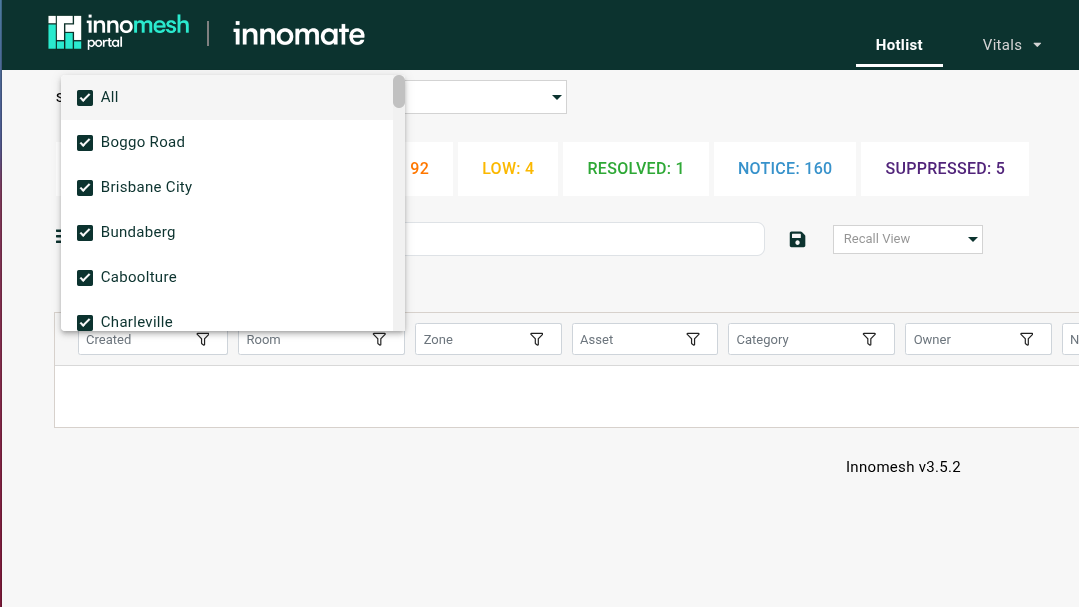

The Site filter has been updated to support multiple selections. To use it, click the filter at the top of the Innomesh Portal as you normally would. You will now see checkboxes next to each site. Select the specific sites you wish to view, or check “Select All” to include every site.
Additional Enhancements 🚀

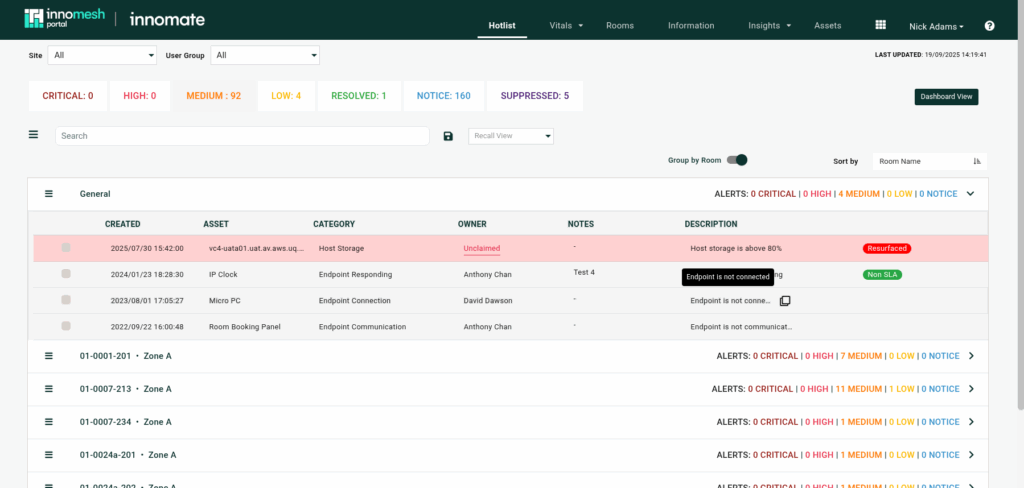

Hotlist Alert Tooltips
Longer hotlist alert names may get trimmed when being shown in the table on the hotlist. The hotlist alert tooltip will now appear above the hotlist alerts when hovering over them to show the full text from the alert.
Asset Profile Images
Asset profile images have been optimised to load faster.
Mattermost Notifications
Mattermost notifications have been reformatted to allow for Mattermost to index the notifications, facilitating better searchability.
Bug Fixes 🪲
- In Innomesh Room Manager, cases of mass room deployment failures due to backend repository throttling have been resolved.
- In Innomesh Room Manager, after a Space CE software version update is selected, the room configuration form is now updated to reflect the new software version.
- In Innomesh Room Manager, fixed a bug where rooms with large configurations were failing to create or update.
- In Innomesh Room Manager, cases of VC-4 Gateway room update failure have been remediated.
- In Innomesh Room Manager, fixed a bug on the “Edit Room” form where the prompt to select an information template could not be cancelled when navigating to the “Information” section.
- In Innomesh Room Manager, the redundant “Information” → “Assets” section of the Room Edit form has been removed.
- In Innomesh Room Manager, fixed an issue where updating only the room information would update the room’s “last updated date” but not “last updated by”.
- In the Innomesh Portal, the upload window for room profile images is now appropriately restricted to valid image file types.
- In the Innomesh Portal’s Room Information view, a flag has been added to force PDFs to load at full resolution.
- In the Innomesh Portal, fixed a bug causing asset profile duplications to fail.
- In the Innomesh Portal, fixed an issue where “0” is incorrectly rendered as an “X” on the Information page.
- In the Innomesh Portal, fixed an issue with showing Microsoft Teams Room (MTR) information when the MTR device resides on a VC-4 Gateway.
- In the Innomesh Portal, fixed an issue in Room Support View where duplicate “Presenting: Source” status tags would show for complex Space CE setups.
- In the Innomesh Portal, rooms that do not report a power state will no longer show their power state as “OFF”.
- The superscript notation for Space VC and Space CE has been retired across the platform.
- For Q-Sys Central Logging, fixed a bug that caused design files to not back up on Cores with a .gz design file archive.
- For Q-Sys Central Logging, a health check has been introduced to detect and recover from Q-Sys worker service failures.
- For Q-Sys Central Logging, resolved cases of potential mismatches in calculating the total number of faults and warnings.
- Other improvements include:
- Removed Herobrine
